Description

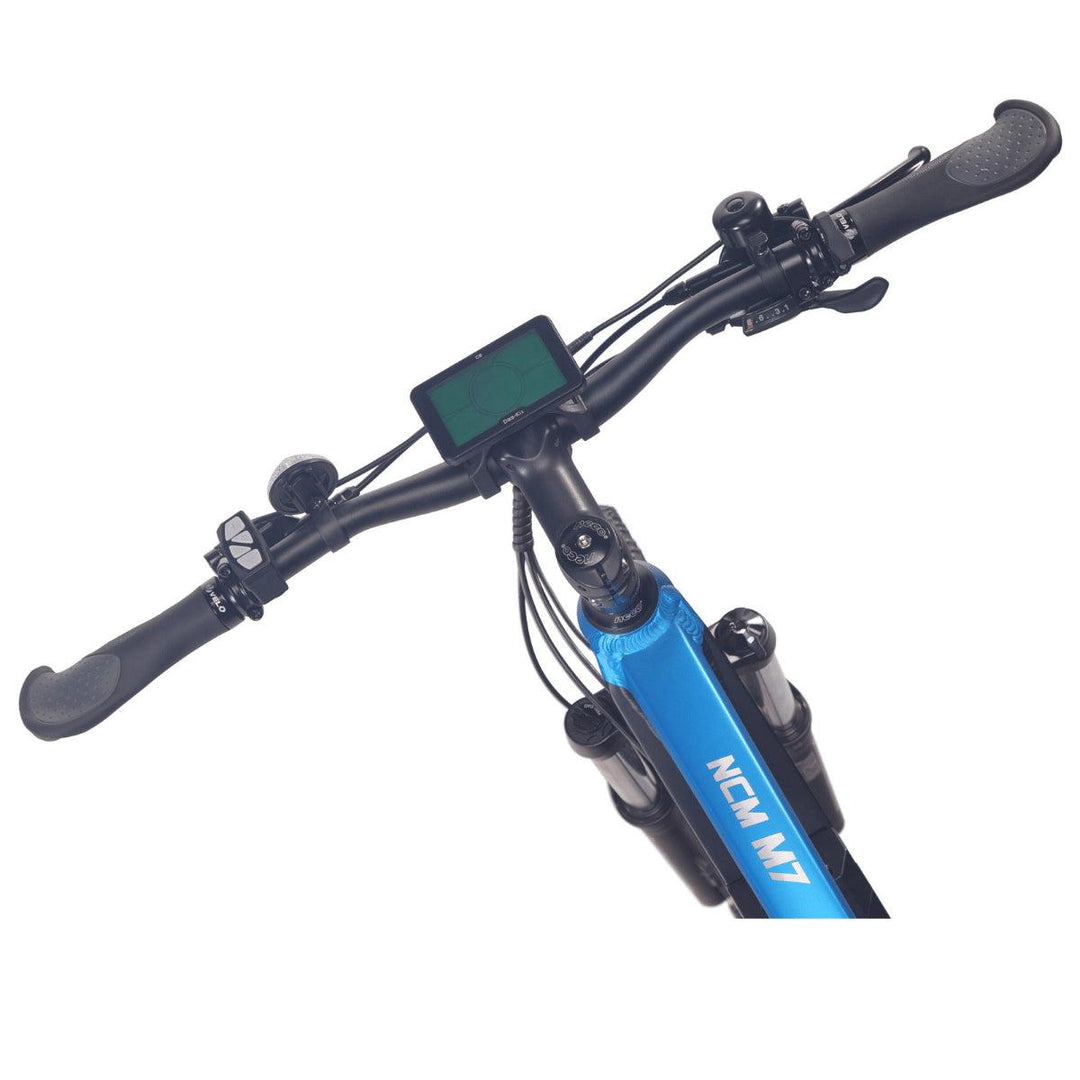

ncm mountainbike NCM M7 Electric Mountain BikeRange 180km Battery DEHAWK, I7, 48V 19Ah, 912Wh with TAG Technology & USB Port Motor Das Kit X15 Motor, 48V 250W Restricted 500W Unrestricted Speed Restricted to 25km h Brakes Das Kit, Hydraulic Disc Brakes Tyres Schwalbe, Smart Sam 27. 5 x 2. 35 The NCM M7 e mountain bike is equipped with high end brakes, drive systems, and torque. The NCM M7 is for adventurous riders who want to hit the trails comfortably in the knowledge that their e bike can
Range
180km
Battery
DEHAWK, I7, 48V 19Ah, 912Wh with TAG Technology & USB Port
Motor
Das-Kit X15 Motor, 48V 250W Restricted/500W Unrestricted
Speed
Restricted to 25km/h
Brakes
Das-Kit, Hydraulic Disc Brakes
Tyres
Schwalbe, Smart Sam 27.5 x 2.35
The NCM M7 e-mountain bike is equipped with high-end brakes, drive systems, and torque. The NCM M7 is for adventurous riders who want to hit the trails comfortably in the knowledge that their e-bike can handle whatever they throw at it. Fitted with a location tag within the battery, feel safe knowing your e-bike is just a convenient check away.
Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- Easy handling of the components
- Adjustable handlebar for a good driving position
- All important controls are easily accessible
- Built-in GPS (Battery Tag Technology)
- Supplied with 48V to deliver a high-output power
- Over 912Wh capacity for a long distance
- Reach up to 180 km (depending on the conditions)
- Battery integrated in the frame for better aesthetics
- Easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
SPECIFICATIONS
| Motor | Das-Kit X15 motor, 48V 250W, max speed 25 km/h |
| Battery | DEHAWK, I7, 48V 19Ah, 912Wh with TAG Technology & USB Port |
| Display | Das-Kit C8 Advanced. LCD Display |
| Charger | Das-Kit, DK483, 48V 3A Fast Charger |
| Frame | Alu. 6061, 27.5x480mm |
| Forks | RST, OMEGA-TNL-27.5, with Hydraulic Lock System |
| Braking System | Das-Kit, Hydraulic Disc Brakes |
| Gear Selector | Shimano Altus 8 speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Acera , RD-M360 |
| Saddle | Selle Royal, Lookin-A200UR, Black |
| Tyre | Schwalbe, Smart Sam 27.5 x 2.35 |
| Handle Grips | Promax, HB-3188, Wid th 680mm, Sand Black |
| Pedal | Wellgo, B087 |
| Range | Up to 180 km |
| Weight | 27.3 kg |
Sizing Chart
| cm | A | B | C | D | E | ||
|---|---|---|---|---|---|---|---|
|
|
Wheel Base | Frame Size | Min / Max Seat Height | Reach | Overall Length | ||
| NCM M7 27.5" Medium | 170-185 cm | 110 cm | 40 cm | 87/105 cm | 39.8 cm | 181.3cm | |
Warranty
- 1-year warranty on all electronic parts (including battery, motor, controller, display, lights).
- 2-year warranty on the bike frame.
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc.) are not included in the warranty but maybe replaced on a case-by-case basis within the first six months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
IMPORTANT NOTICE
The laws regarding the use of scooters/e-bikes on public lands, roads, and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles. Always use appropriate protective riding equipment, such as an approved helmet and suitable clothing.
Note: Product assembly is not included.
